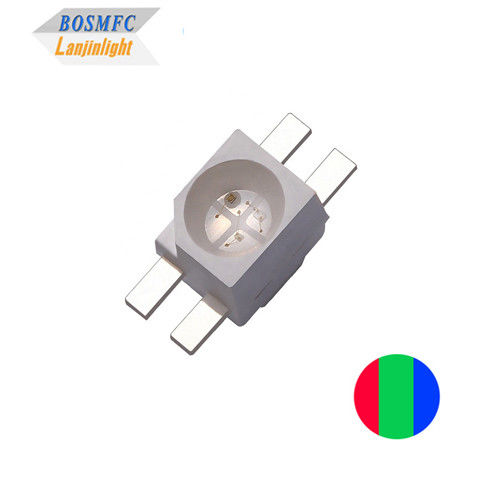

Practical 6028 RGB LED Reverse Mount 3528 SMD For Mechanical Keyboard Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 6028 SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000pcs |
|---|---|
| Packaging Details: | 2000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 60mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-630 / 515-525 / 460-470 Nm |
| Luminous Intensity: | 400 / 800 / 300 Mcd | Forward Current: | 20mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 3.2/6.0*2.8*1.9mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 2000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | 3528 Reverse Mount SMD LED,6028 RGB LED,flexible smd 3528 rgb led strip |
||
Product Description

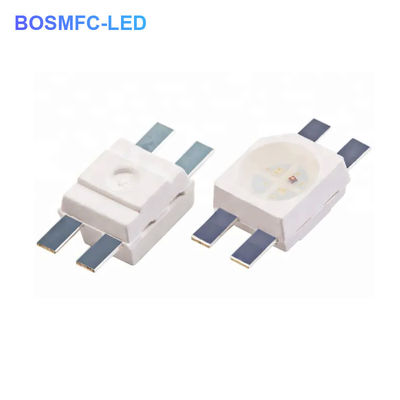

6028 RGB LED Diode reverse mount 3528 SMD LED RGB light for mechanical keyboard Lighting
Features:
- Well-known chip material
- 99.99% gold wire bonding
- High flux per LED
- Low-temp & lead free reflow soldering
- More energy efficient than incandescent and most halogen lamps
- Low Voltage DC operated
- Instant light(less than 100ns)
Technical Parameters:
Electrical optical characteristics of 6028 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
515 460 |
--- | 630
525 470 |
nm | IF=20mA |
| Luminous intensity | Iv | Red
Green Blue |
400
800 300 |
mcd | IF=20mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.2/6.0*2.8*1.9mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
- Telecommunication, office automation, home appliances, industrial equipment
- Status indicator
- Signal and symbol lighting
- Front panel backlighting
- Full-color strip lighting
- Indoor decorative lighting / display screen
Materials:
