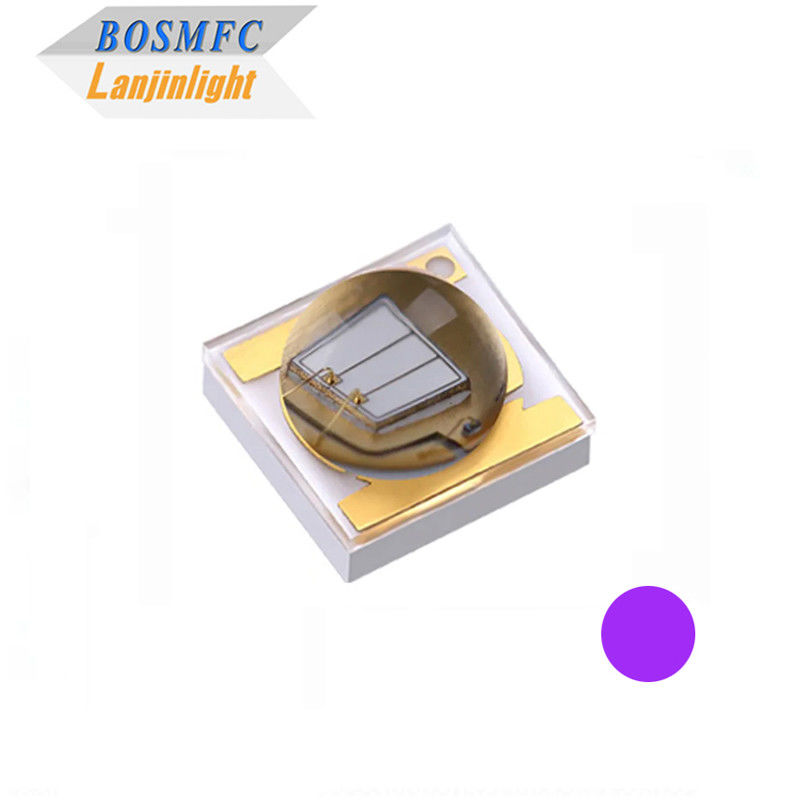

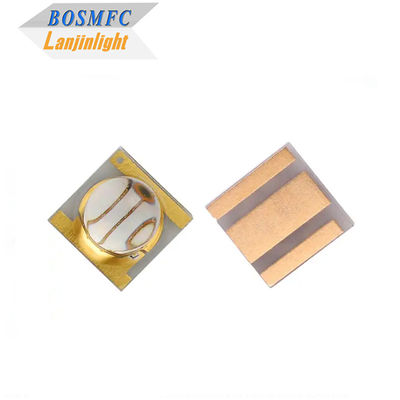

3W 3535 Surface Mount UV LED Chip High Power UVA UVC 365nm For UV Curing
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | 3w 3535 SMD LED UV 365nm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | 2000pcs/reel |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 200KK pcs/ month |
|
Detail Information |
|||
| Color: | UVA Light | Wavelength: | 365nm |
|---|---|---|---|
| Forward Voltage: | 3.2-3.6V | Viewing Angle: | 120° |
| Lifespan: | 50,000hrs | Operating Temperature: | -40~85℃ |
| Storage Temperature: | -40~100℃ | ||
| Highlight: | 3W Surface Mount UV LED,3535 Surface Mount UV LED,365nm UV C LED Chip |
||
Product Description
China wholesell LED factory high power LED UVA 365nm 3w 3535 SMD LED for UV curing
UVA 365nm 3w 3535 SMD LED---Lanjin catalog.pdf
The UVA 365nm 3w 3535 SMD LED emit ultraviolet light at a wavelength of 365nm, making them ideal for various UV curing processes. With their high power output and efficient performance, they provide reliable and consistent UV light for curing applications.
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Dominant Wavelength | λd | UV | 360 | --- | 370 | nm | IF=700mA |
| Power dissipation | Pt | UV | --- | 600 | --- | mW | IF=700mA |
| Forward voltage | VF | UV | 3.2 | --- | 3.6 | V | IF=700mA |
| Viewing angle | --- | 120 | --- | deg | IF=700mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=700mA |
| Operation Temperature | －40~+85℃ | Size | 3.45*3.45*2.36mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/bag |
Applications:
- Printing and Glue Curing
- Plant Grow Light Source
- Mosquito and Insect Trapping
- Fluorescent Lighting
- Jewelry Detection
- Nail Enhancement
- Air disifection
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Can you provide customization and OEM service?
A1: Yes, we offer customization and OEM service according to your requirements.
Q2.What chip do you usually use for your led?
A11: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4: How long of your lead time?
A9: 3-5 days for samples, 2-4 weeks for mass order.
Q5: How do you deal with the LED Failure issue?
A: Our engineer will analyze the failure and find out the failure cause according to the failed products pictures or the rejected samples from clients. We will compensate a new batch of LED products to you as fast as we could and send them to you if the failure caused by Lanjin.
Our led products are produced in strict quality control system and we will do the inspection before shipment, so the defective rate will be more less than others.
