3mm F3 Dip UV LED Chip 395nm 405nm Through Hole For Nail Polish Curing
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, reach |
| Model Number: | UVA 3mm LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/bag |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 200KK pcs/ month |
|
Detail Information |
|||
| Color: | UVA Light | Wavelength: | 395-405nm |
|---|---|---|---|
| Forward Voltage: | 3.0-3.6V | Viewing Angle: | 30° |
| Lifespan: | 50,000hrs | Operating Temperature: | -40~85℃ |
| Storage Temperature: | -40~100℃ | ||
| Highlight: | UV LED Chip 395nm,UV LED Chip Through Hole,Nail Polish 3mm UV LED |
||
Product Description

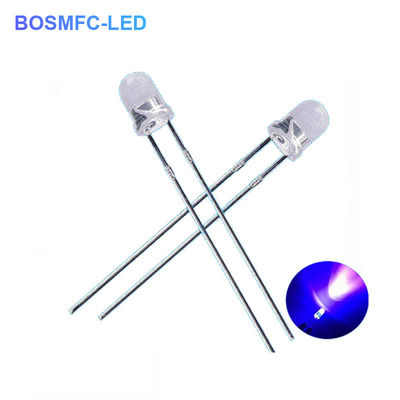

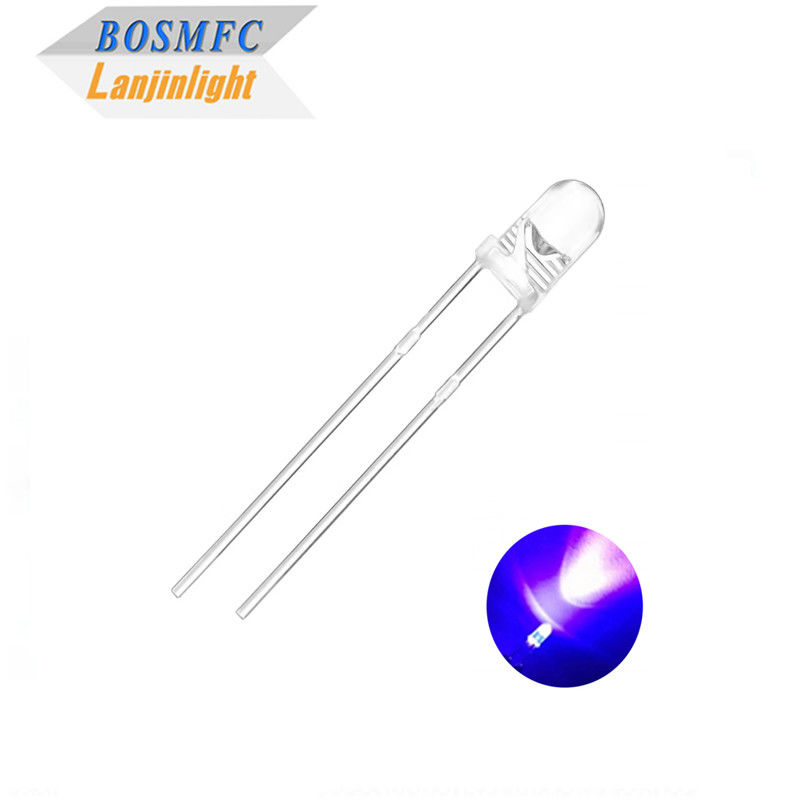

F3 dip UV LED 395nm 405nm 3mm through-hole LED UVA led chip for nail polish curing
F3 dip UV LED---Lanjin catalog.pdf
The F3 dip UV LED is a through-hole LED with a diameter of 3mm that emits ultraviolet (UV) light. It is commonly used for various applications, including nail polish curing. The LED chip used in this LED emits UV light at wavelengths of 395nm and 405nm, which fall within the UVA spectrum. This specific UV LED chip is designed to provide the necessary UV light for curing nail polish effectively. The F3 dip UV LED is a popular choice due to its small size, ease of use, and suitability for nail polish curing applications.
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Dominant Wavelength | λd | UV | 395 | --- | 405 | nm | IF=20mA |
| Power dissipation | Pt | UV | --- | 10 | --- | mW | IF=20mA |
| Forward voltage | VF | UV | 3.0 | --- | 3.6 | V | IF=20mA |
| Viewing angle | --- | 30 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Applications:
- Printing Ink Curing
- Currency Counting
- Verification Equipment
- Mosquito and Insect Trapping
- Fluorescent Lighting
- Jewelry and Jade Detection
- Medical Detection
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1. What chip you usually use for your led?
A: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q2. What about the lead time?
A:5-7 days for samples, 2-3 weeks for mass order.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It takes about 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
