5050 RGBW RGB SMD LED Diode 5054 20mA For Multi Color LED Strip
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 5050 RGBW SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | R: 60mW, G/B: 110mW; W: 80mW |
|---|---|---|---|
| Color: | RGBW Light | Wavelength: | 620-635 / 515-525 / 460-473 Nm/white |
| Luminous Intensity: | R:600-800mcd, G:1600-1800mcd, B:500-600mcd, W:10-12lm | Forward Current: | 20mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v/2.8-3.4v | Size: | 5.3*5.0*1.6mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 1000pcs/reel | Lifetime: | 60000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | led datasheet smd 5050 rgbw,5050 Multi Color LED Strip,5054 rgb led |
||
Product Description

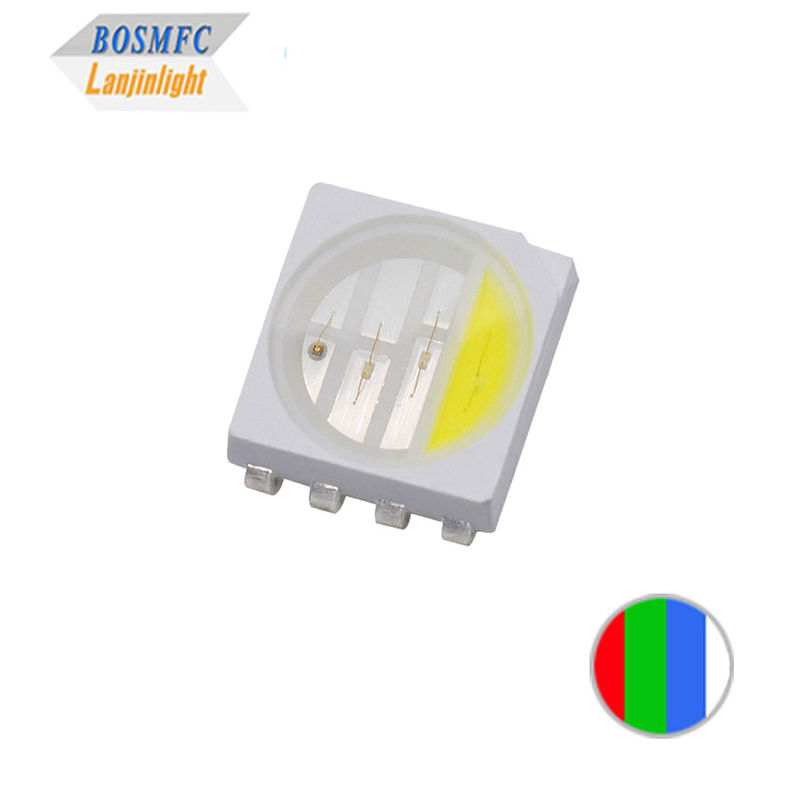

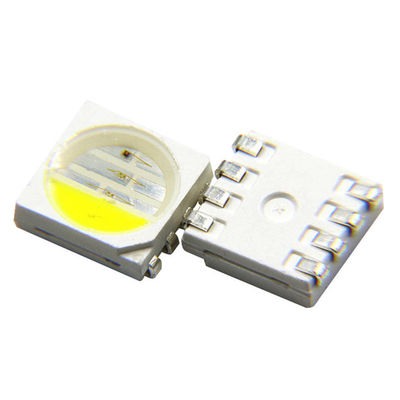

5050 RGBW SMD LED diode 5054 RGB LED chip full-color light for multi-color LED strip
The 5050 RGBW SMD LED diode is specifically engineered to provide vibrant and dynamic lighting effects in multi-color LED strips, making it suitable for various applications where customizable and multi-colored illumination is desired.
Features:
- Easy installation
- 99.99% gold wire bonding
- Strong anti-static ability
- Low-temp & lead-free reflow soldering
- More energy-efficient than incandescent and most halogen lamps
- Low Voltage operated
Technical Parameters:
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue White |
620
515 460 2700 |
--- | 635
525 473 6500 |
nm
K |
IF=20mA |
| Luminous intensity | Iv | Red
Green Blue White |
800
1600 500 10 |
mcd
lm |
IF=20mA | ||
| Forward voltage | VF | Red
Green Blue White |
1.8
2.8 2.8 2.8 |
--- | 2.4
3.4 3.4 3.4 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 5.3*5.0*1.6mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
- Architectural lighting in buildings, bridges, and other architectural structures.
- Indoor decorative lighting in homes, hotels, restaurants, and retail stores.
- Display screens, display panels,
- Signal and symbol lighting
- Automotive lighting,interior ambient lighting.
- Full-color strip lighting
- Status indicators
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
