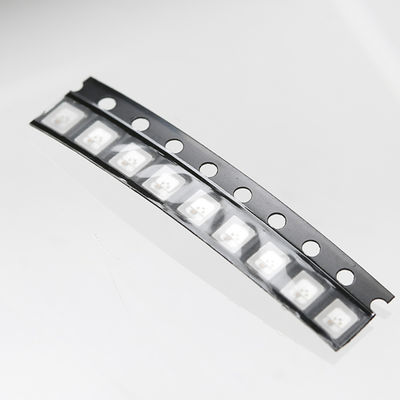

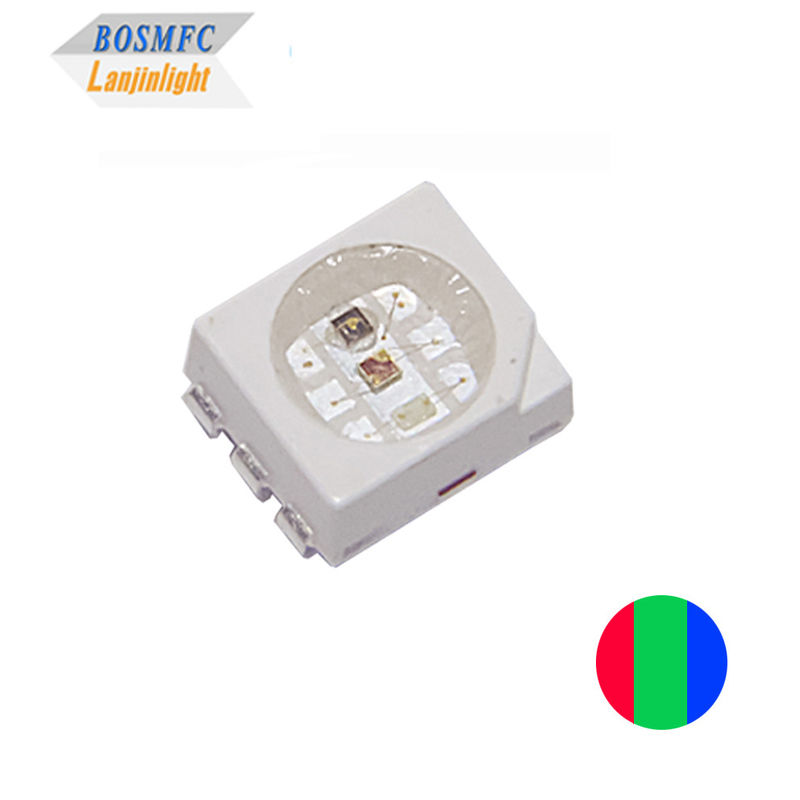

2835 SMD LED RGB anti Static 0.6W Tri Colour LED for Smart Home Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | BOSMFC |
| Certification: | Rohs, Reach |
| Model Number: | 2835 RGB SMD LED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Packaging Details: | 4000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
Detail Information |
|||
| Application: | Indoor & Outdoor Lighting | Power Dissipation: | 200mW |
|---|---|---|---|
| Color: | RGB Light | Wavelength: | 620-635 / 515-525 / 460-473 Nm |
| Luminous Intensity: | 2200/ 5500/ 1200 Mcd | Forward Current: | 60mA |
| Forward Voltage: | 1.8-2.4/2.8-3.4 /2.8-3.4v | Size: | 2.8*3.2*1.9mm |
| Warranty: | 3 Years | Chip Brand: | San'an Chip / Epistar Chip |
| Package: | 4000pcs/reel | Lifetime: | 50000h |
| Operating Temperature: | -40℃~85℃ | Reverse Voltage: | 5V |
| Storage Temperature: | -40℃~100℃ | ||
| Highlight: | led module 12v 2835,0.6w led strip light 2835,Tri Colour LED |
||
Product Description
0.6w 2835 RGB LED tri-color led light for smart home lights
0.6W 2835 RGB LED is energy-efficient and suitable for smart home lighting applications. This LED can be controlled to produce a wide range of colors, allowing for customizable and dynamic lighting effects in smart homes.
Features:
- Energy-saving and environmentally friendly
- 99.99% pure gold wire bonding
- Low light attenuation
- Strong anti-static ability
- More energy-efficient than incandescent and most halogen lamps
- RoHS certified
- Long lifespan 50,000 hours
Technical Parameters:
Electrical optical characteristics of 2835 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue |
620
515 460 |
--- | 635
525 470 |
nm | IF=60mA |
| Luminous intensity | Iv | Red
Green Blue |
2200
5500 1200 |
mcd | IF=60mA | ||
| Forward voltage | VF | Red
Green Blue |
1.8
2.8 2.8 |
--- | 2.4
3.4 3.4 |
V | IF=60mA |
| Viewing angle | --- | 120 | --- | deg | IF=60mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=60mA |
| Operation Temperature | －40~+85℃ | Size | 2.8*3.5*1.3mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Mechanical keyboard lighting
- Decorative lighting
- Display screens and curtain display
- Signal and symbol lighting
- Automotive lamps and electronics, including traffic lig
- Full-color strip lighting
- LED taillights, brake lights, license plate lamps, and in-vehicle lighting
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory?
A: Yes, we are LED factory 18 years in Dongguan city, Welcome to your visisting!
Q2: What about the lead time?
A: Sample needs about 3 working days. Customized products need 5-7 working days. Mass production 10-15 days.
Q3: What payment term do you accept?
A: We accept T/T, Paypal, Western Union .
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places formal order.
4. We arrange the production.
